Drilling depth: 180m
Drilling diameter: 100-325mm
Main motor power: 55kW

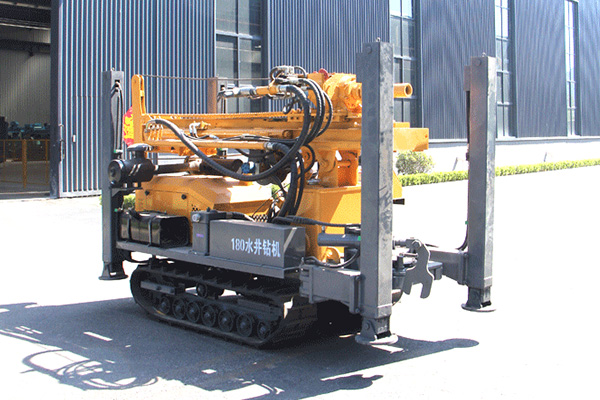

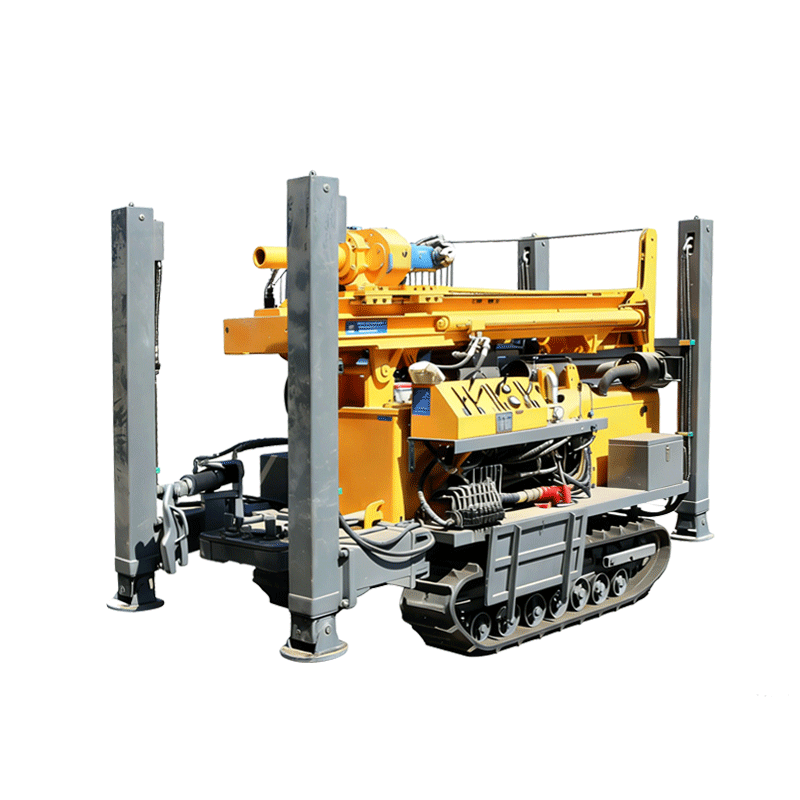

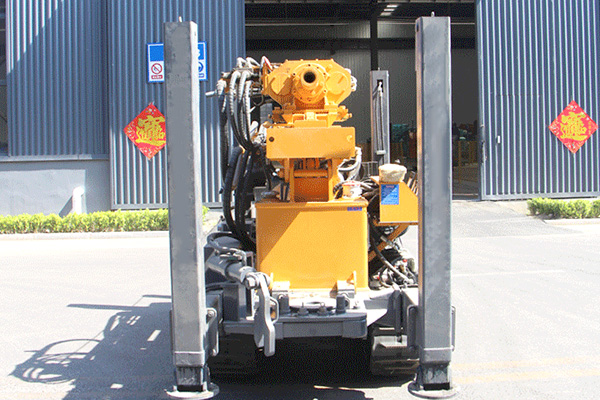

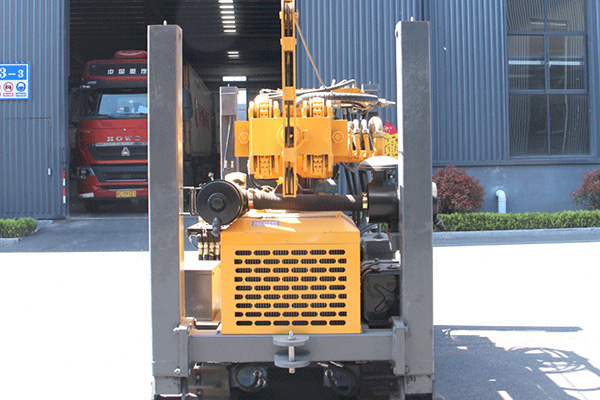

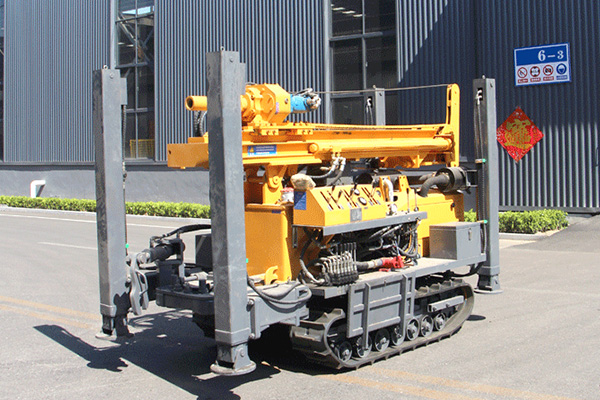

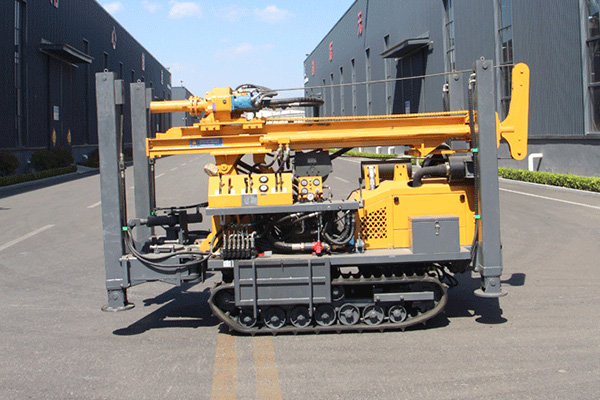

MKDQZ-180 Pneumatic Drilling Rig
Overview
Specially engineered for high-efficiency rock penetration and demanding geological conditions, the MKDQZ-180 pneumatic DTH (Down-The-Hole) drilling rig combines powerful hydraulic control with high-pressure pneumatic impact technology. Mounted on an upgraded heavy-duty crawler chassis, this rig excels in fracturing hard rock, granite, and pebbled strata. From mountainous terrains to parched farmlands, it delivers deeper reach, rapid drilling speeds, and reliable performance, ensuring fast access to clean water while breaking through the toughest geological barriers.
Specifications
| Model | MKDQZ-180 |
| Weight | 4.5T |
Drill hole diameter | 140-254 mm |
Drill hole depth | 180m |
| Single push length | 3.3m |
Travel speed | 2.5km/h |
Climbing ability | 30Max. |
Engine power | 55kW |
1.7-2.5MPA | |
| Air consumption | 17-31m3/min |
Rotation speed | 45-70rpm |
| High leg stroke | 1.4m |
| Drill pipe diameter | Φ76 Φ89mm |
Drill pipe length | 1.5m /2.0m/ 3.0m |
Rig lifting force | 12T |
Rapid rise speed | 20m/min |
| Fast feeding speed | 40m/min |
| Width of loading | 2.4m |
Hoisting force of winch | -- |
Drill pipe length | 3200-4600N.m |
Dimensions | 3950*1630*2250mm |
The penetration efficiency | 10-35m/h |
| The engine brand | Quanchai |
Key Features
1. High-efficiency pneumatic DTH drilling for rapid rock penetration
Utilizing advanced high-pressure air impactors, this rig pulverizes hard rock formations, granite, and limestone with incredible speed. It slashes drilling time compared to traditional rotary rigs, ensuring you reach water-bearing strata faster.
2. Premium crawler undercarriage for superior all-terrain mobility
Equipped with heavy-duty rubber or steel tracks, the MKDQZ-180 effortlessly navigates rugged mountains, muddy fields, and loose sandy soils. Move between boreholes with true go-anywhere independence without relying on towing vehicles.
3. High-torque hydraulic power head to prevent jamming
The rugged hydraulic rotary head delivers a massive 3200-4600N.m of torque. This consistent twisting force allows the rig to maintain continuous, smooth rotation even when encountering complex, fractured, or loose gravel layers.
4. Dual-system optimization for low fuel consumption
The onboard diesel engine is dedicated entirely to powering the efficient hydraulic system (driving the tracks, mast, and rotation), while compressed air handles the hammering and flushing. This smart separation maximizes output while keeping operating costs low.
5. Centralized hydraulic control panel for effortless operation
All controls—including feeding, lifting, rotation, and track movement—are ergonomically arranged on a single, intuitive control panel. It simplifies the drilling process, allowing a small crew to operate the machine safely and efficiently.
6. Excellent dust management and hole-clearing capability
Powered by high-pressure air streams, the rig continuously ejects heavy cuttings and debris out of the borehole. This keeps the hole flawlessly clean, protects your drilling tools from premature wear, and ensures a cleaner working environment.
Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDQZ-180 water well drilling rig, please contact us.
