Working Pressure: 20Mpa
Rated power: 18.5kW
Maximum excavation force: 10KN

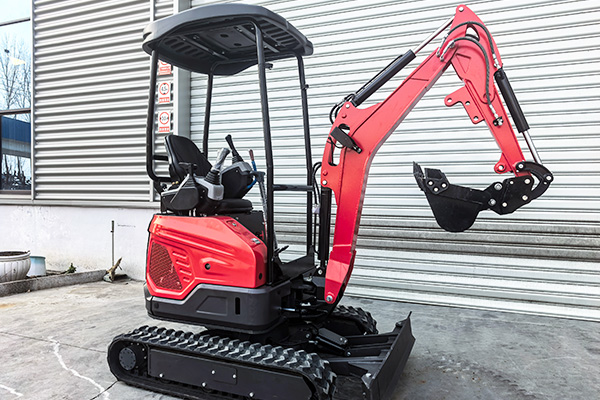

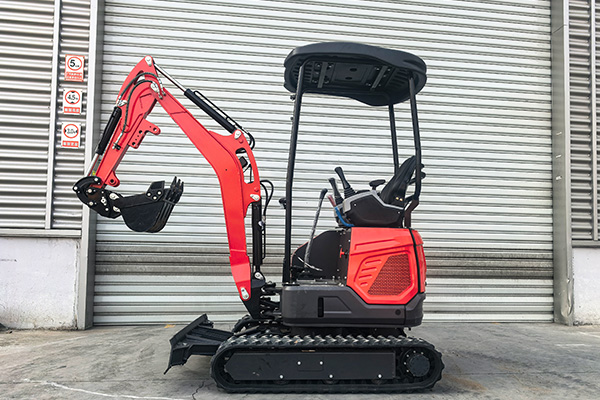

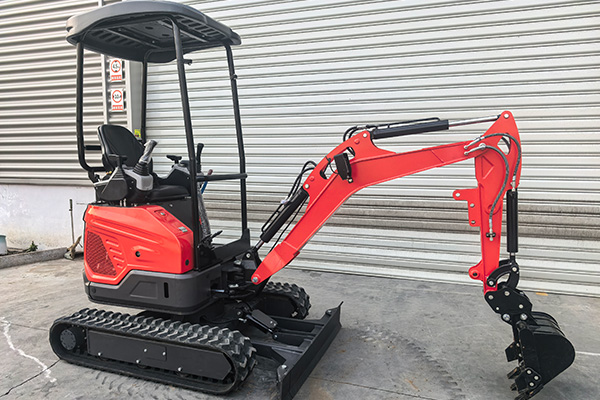

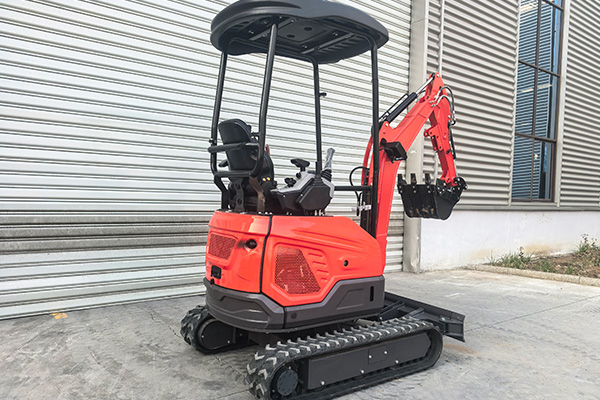

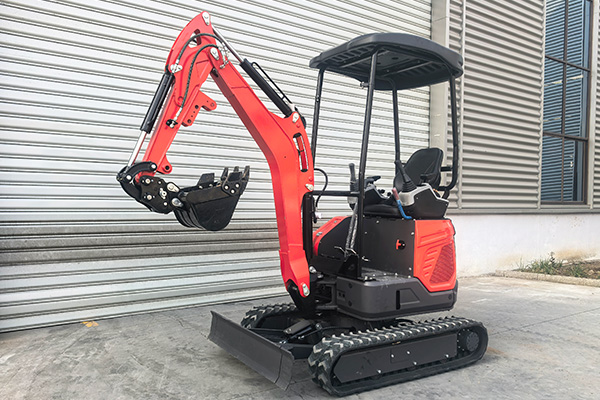

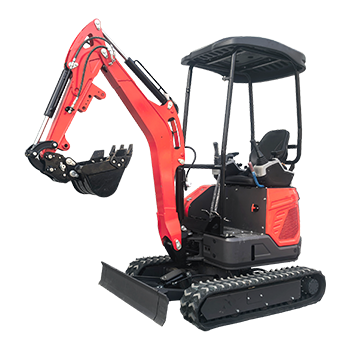

MKD-18L Mini excavator
Overview
The MKD-18L ultra-compact crawler excavator is a mini construction machine designed for extreme confined-space operations, ideal for light-duty projects including indoor demolition, yard renovation, landscaping and small farm maintenance. With a minimum body width of only 940mm and a retractable undercarriage, it easily passes through standard doorways and works indoors, perfectly solving construction difficulties in restricted areas inaccessible to large equipment.
Specifications
| Model | MKD-18L |
Engine | Laidong385/18.5Kw |
Working Pressure | 20Mpa |
Maximum excavation force | 10KN |
Maximum excavation depth | 2000mm |
Maximum excavation distance | 3260mm |
Maximum vertical arm digging depth | 1800mm |
Maximum excavation height | 3030mm |
Maximum unloading height | 2080mm |
Minimum turning radius | 1500mm |
Ground pressure | 30Kpa |
Bulldozer blade height and width | 220*1100mm |
Hydraulic flow rate | 45L/min |
Climbing angle | 30° |
1. Retractable Crawler Undercarriage with One-Click Width Adjustment
The overall track width is adjustable from 1010mm to 1230mm. In retracted mode, the ultra-compact body travels easily through narrow alleys, yard gaps and orchard rows. In extended mode, the wider ground span significantly improves machine stability and prevents tilting during heavy-load digging. One machine balances passability and working stability, adapting to diverse site conditions.
2. Laidong 385 Diesel Engine for Durability & Low Operating Cost
Equipped with a Laidong 385 three-cylinder diesel engine with a rated power of 18.5kW, it features mature and reliable technology, smooth and strong power output, and excellent fuel economy. This engine model has a large global market share with easily available spare parts and low maintenance thresholds, ensuring controllable long-term operation and upkeep costs, making it a widely recognized power solution for small construction equipment.3. Shimadzu Hydraulic Pump & Proven Hydraulic System for Precise & Responsive Control
The core hydraulic pump adopts the well-known Shimadzu brand, matched with Beifang multi-way valve and Liwo swing & travel motors. The complete hydraulic system operates at a working pressure of 20MPa with a hydraulic flow rate of 45L/min. The well-matched system delivers fast response and smooth compound operations, with delicate and controllable digging, swinging and traveling movements, allowing even beginners to master precise operation quickly.
4. Full-Dimension Working Range for All Small Project Needs
It achieves a maximum excavation depth of 2000mm, vertical arm digging depth of 1800mm, maximum digging height of 3030mm, maximum unloading height of 2080mm and maximum horizontal digging reach of 3260mm. Paired with a 400mm standard bucket with 0.02m³ capacity, it fully meets the operation needs of small projects such as yard trenching, orchard fertilization, pipeline laying and earth backfilling.
5. Standard Multi-Functional Dozer Blade for Versatility & Cost Saving
It is fitted with a 220*1100mm dozer blade as standard, which can independently complete auxiliary processes such as site grading, earth backfilling and working area cleaning. It can also be lowered to support the machine during digging to further enhance operation stability. No additional small bulldozer is needed, and one machine completes a full set of small earthwork, effectively reducing equipment investment costs.For inquiries regarding the price, specifications, or configuration details of the MKD-18L Mini excavator , please contact us.
