Drilling depth: 500m
Drilling diameter: 140-350mm
Main motor power: 118kW

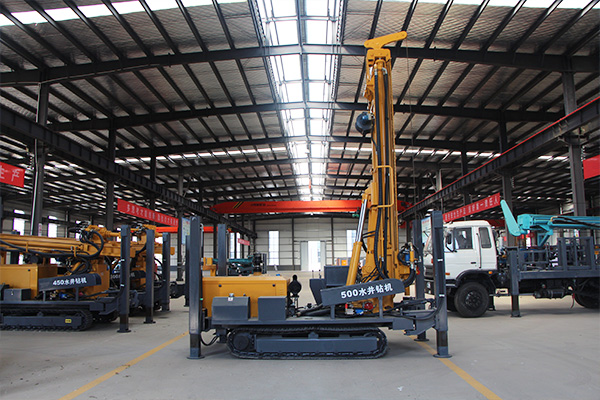

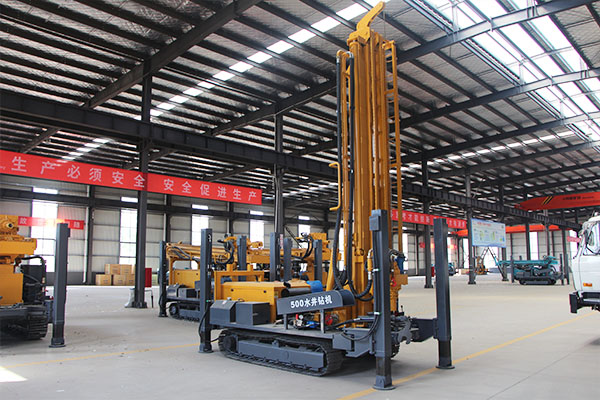

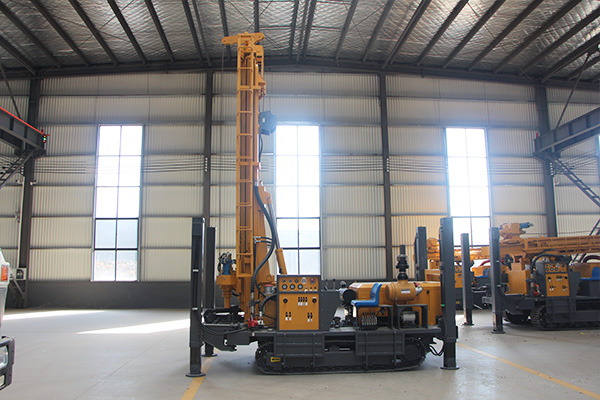

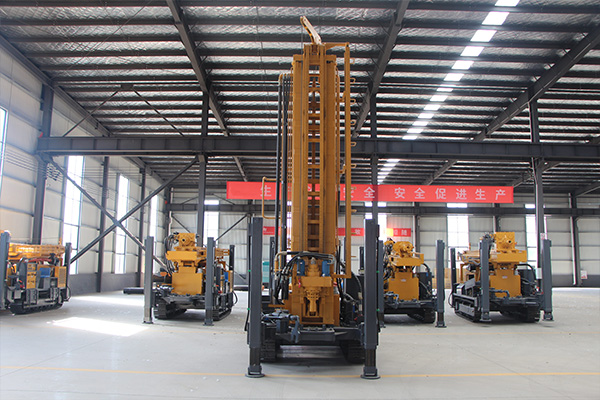

MKDQZ-500 Pneumatic Water Well Drilling Rig
Overview
The MKDQZ-500 Pneumatic Water Well Drilling Rig is a heavy-duty crawler-mounted drilling solution engineered for deep-well construction up to 500 meters. Powered by a Yuchai 118kW diesel engine and featuring a maximum lifting force of 26 tons, this rig delivers exceptional drilling efficiency (15-35m/h) across a wide range of hole diameters (140-350mm). With rugged steel crawler tracks, hydraulic outriggers, and a powerful rotary torque of up to 10,000N·m, the MKDQZ-500 is built to tackle the most demanding geological conditions—from hard rock formations to complex mountainous terrains—making it the ideal choice for commercial water well drilling, geothermal exploration, and mining applications.
Specifications
| Model | MKDQZ-500 |
Weight | 9.5T |
Drill hole diameter | 140-350mm |
Drill hole depth | 500m |
Single push length | 6.6m |
Travel speed | 2.5km/h |
Climbing ability | 30Max. |
Engine power | 118kW |
Working air pressure | 1.7-3.5MPA |
Air consumption | 17-42m3/min |
Rotation speed | 45-130rpm |
High leg stroke | 1.6m |
Drill pipe diameter | Φ102 Φ108 Φ114mm |
Drill pipe length | 1.5m/ 2.0m /3.0m/6.0m |
Rig lifting force | 26T |
Rapid rise speed | 20m/min |
Fast feeding speed | 40m/min |
Width of loading | 2.85m |
Hoisting force of winch | 2T |
Swing torque | 7500-10000N.m |
Dimensions | 6150*2200*2600mm |
The penetration efficiency | 15-35m/h |
The engine brand | Yuchai |
1. 500m Max Drilling Depth with 140–350mm Wide Bore Range
This rig supports a maximum drilling depth of 500 meters and covers a borehole diameter span from 140mm to 350mm, fulfilling the vast majority of domestic water supply, farm irrigation and industrial water well demands. One unit can handle both small-diameter deep wells and large-diameter shallow wells, eliminating the need to deploy multiple equipment for different project types.2. High Penetration Efficiency up to 35m/h for Hard Rock
Leveraging pneumatic percussion drilling principle, the rig achieves a penetration rate of 15–35m/h in typical hard rock formations. Compared with conventional rotary drilling rigs, it significantly boosts rock-breaking efficiency in dense geological conditions, cutting single-well construction duration by a large margin and improving daily output for drilling contractors.3. 7500–10000N.m Adjustable Rotation Torque System
The power head provides a wide adjustable torque range of 7500–10000N.m paired with a rotation speed of 45–130rpm. It can flexibly match different drilling processes and formation conditions: outputting low-speed high torque for hard rock drilling, and high-speed low torque for soft soil and sand layers, to achieve optimal drilling effect under various strata.4. High Leg Stroke for Rapid Site Setup
Four hydraulic outriggers with a 1.6-meter stroke allow the rig to complete leveling and fixation quickly on uneven ground, without the assistance of hoisting machinery. This design shortens pre-drilling preparation time and enhances the stability of the whole machine during high-torque drilling, ensuring vertical accuracy of boreholes.
5. Multi-Spec Drill Pipe Compatibility for Flexible Configuration
The rig is compatible with drill pipes of Φ102mm, Φ108mm and Φ114mm diameters, and supports length options of 1.5m, 2.0m, 3.0m and 6.0m. Users can flexibly match drill pipe solutions according to well depth, bore size and geological conditions, avoiding additional procurement costs for extra drilling tools.6.Compact Body Design for Low-Cost Transportation
With overall dimensions of 6150*2200*2600mm, a loading width of only 2.85m and a total weight of 9.5 tons, the rig can be transported via standard flatbed trucks and standard containers with low logistics costs. Its compact footprint also adapts to drilling operations in narrow sites such as residential yards and rural village roads.For inquiries regarding the price, specifications, or configuration details of the MKDQZ-500 water well drilling rig, please contact us.
