Lifting Height: 3 m
Fork Length: 1070 mm
Max Lifting Capacity: 1000 kg

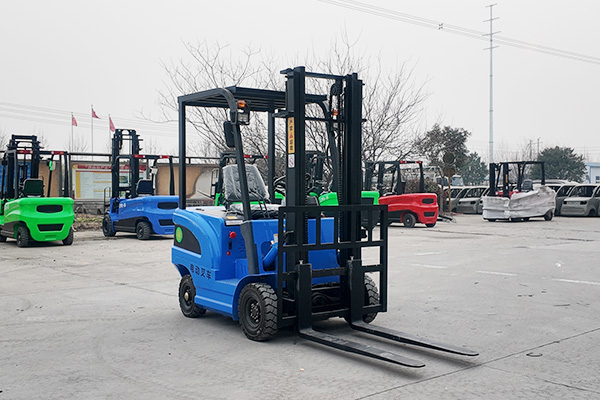

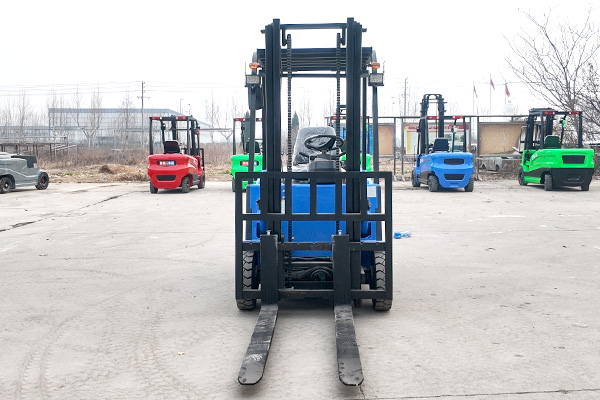

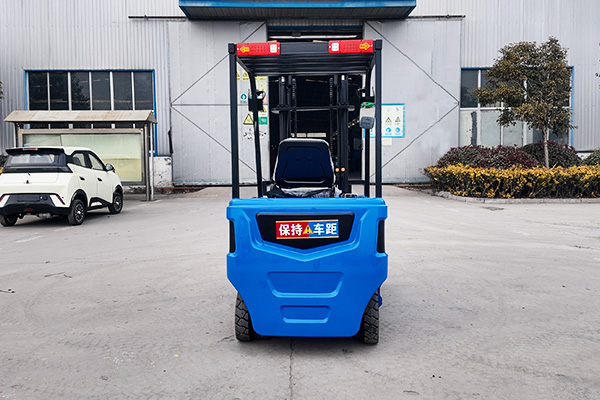

MKDDC-10 Electric Forklift
Overview
The MKDDC-10 is a compact electric forklift with a standard 3m lifting height (upgradeable to 4m), powered by a 1800W drive motor and 1200W lift motor, with a 60V maintenance-free battery. Its small footprint and agile maneuverability make it ideal for daily pallet handling and shelving operations in tight warehouses, workshops, and loading areas.
Specifications
| Model | MKDDC-10 |
Lift Height | 3m |
Standard battery capacity | 5 pieces of Chaowei maintenance-free 70A |
Mast inclination angle (front/rear) | 6°-12° |
Gradeability/empty/full load | 15/13 |
Load Capacity | 1,000 kg |
Overall dimensions (length*width*height) | 2100*1120*2150mm |

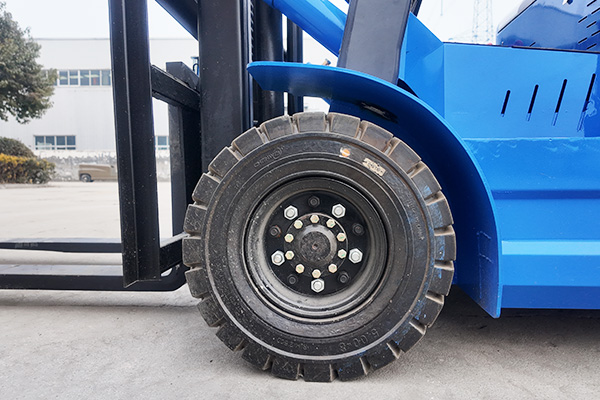

Tire | Front wheel 500-8, Rear wheel 400-8 |
1. Compact Design for Tight Spaces
With overall dimensions of just 2100×1120×2150mm and a minimum ground clearance of 9.5cm, the MKDDC-10 is engineered to navigate narrow aisles, cramped warehouses, and confined loading zones with ease. Its small footprint maximizes your usable workspace without sacrificing performance.
2. High-Strength C-Shaped Steel Mast
Built with 10# national standard C-shaped steel at 5mm thickness, the mast delivers exceptional durability and stability under load. The 6°-12° front/rear tilt angle provides flexible load positioning for various handling scenarios.3. Extended Lifting Height Options
Standard lifting height of 3 meters, with optional 2-section gantry extension up to 4 meters. Whether you're stocking mid-level racks or accessing higher storage, the MKDDC-10 adapts to your vertical needs.
4. Powerful Dual-Motor Drive System
Equipped with Shengqiao 1800W drive motor and 1200W lifting motor, this forklift delivers reliable power for both travel and hoisting operations. The independent motor configuration ensures consistent performance even during intensive use.
5. Reliable Oil Brake System
Equipped with an oil brake system for responsive, consistent stopping power. Enhanced safety and control in busy warehouse environments where precision stopping is critical.
6.Optimized Wheelbase & Track Width
Front and rear wheelbase of 1.38m, with front track of 1010mm and rear track of 870mm, delivering excellent stability and balance during lifting and turning. The square tube steering axle enhances durability and steering precision.
Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDDC-10 Electric Forklift , please contact us.
