Self weight: 6.7 T
Dimensions: 4.7 *1.5 * 2.25m
Max operating radius: 15 m

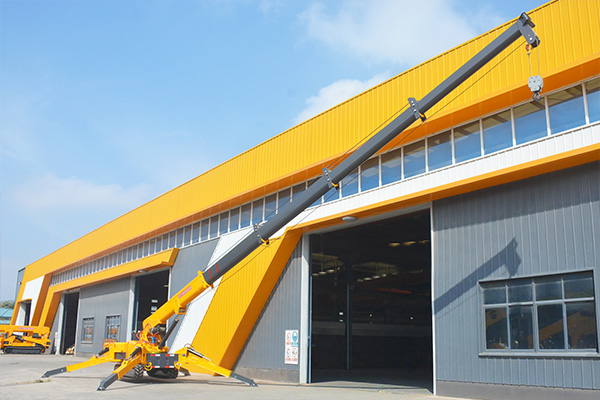

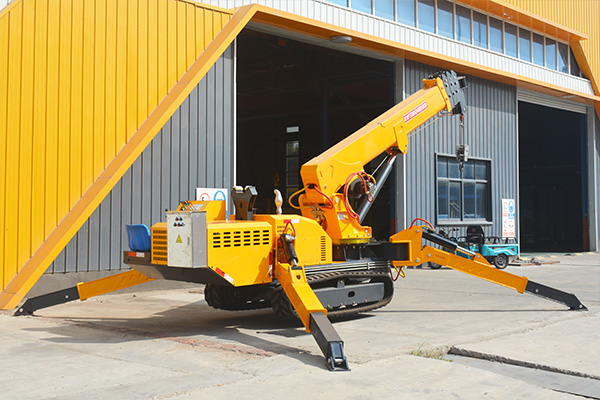

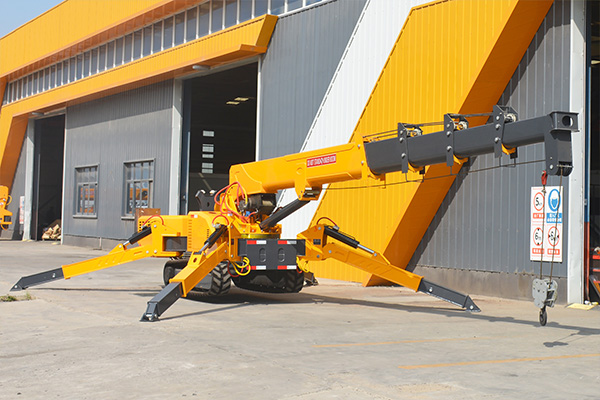

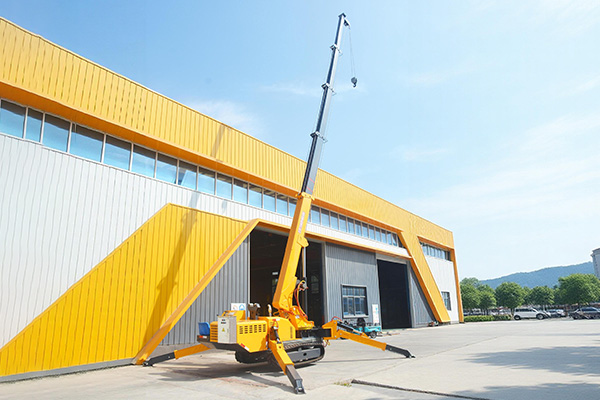

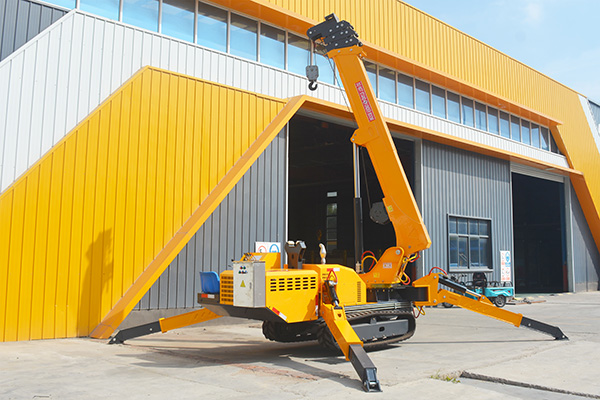

MKDZ-5T Spider Crane
Overview
The MKDZ-5T Spider Crane is a 5-ton heavy-duty compact lifting device, standardly equipped with a Yuchai 490CC 58KW high-power diesel engine and a 5-section high-strength telescopic boom. It delivers a maximum lifting height of 17m and a maximum safe operating radius of 15m, supporting 360° continuous slewing operation. Adopting a two-speed winch system, fast luffing and slewing mechanisms, it delivers smooth and efficient motion response. Paired with a 300mm wide crawler chassis with excellent ground contact performance, it adapts to various complex construction site terrains. Its wide-temperature starting system adapts to extreme environments from -50℃ to 45℃, and it supports multiple customizable configurations including load moment controller, wireless remote control and working basket.
Specifications
| Model | MKDZ-5T |
Rated Lifting Capacity | 6.7t |
Max Vertical Lifting Height | 17 m |
Max Safe Operating Radius | 15 m |
Telescopic Boom form | 4mx5-section lifting arm (Support customization) |
Boom length/time | 4.5m-17m/54sec(adjustable) |
Overall Transport Dimensions (L×W×H) | 4700 × 1500 × 2250 mm |
Winches Hook Rising Speed | 12m/min (4-rope) two-speed |
Winches Wire Rope Specifications | Ф 11mm*60m |
Track | 300mm(width)52.5mm(pitch)90mm(section) |
1. 5 Ton Heavy-Duty Lifting with 17m Maximum Lifting Height
With a rated lifting capacity of 5 tons and a maximum above-ground lifting height of 17m, it covers scenarios such as mid-high rise building facade construction, high-position equipment installation and overhead pipeline erection. It meets heavy-duty high-altitude lifting demands and can replace traditional large cranes for most mid-high lifting operations.
2. 15m Extra-Large Operating Radius with Wide-Range Coverage
The maximum safe operating radius reaches 15m. With outriggers fixed, it covers a large working area, significantly reduces the frequency of equipment relocation and re-setup, fits multi-point hoisting demands on large construction sites, and effectively improves continuous operation efficiency.3. 5-Section High-Strength Telescopic Boom with Full-Stroke Stepless Adjustment
Adopting a 4m×5-section high-strength telescopic boom structure, the boom length is steplessly adjustable from 4.5m to 17m, precisely adapting to different working height and radius demands. Boom parameters are customizable for personalized optimization based on customers' working conditions.
4. Two-Speed Winch System with 12m/min Efficient Hoisting
Adopting a 4-rope two-speed winch mechanism with a maximum hoisting speed of 12m/min and Φ11mm×60m high-strength wire rope, it flexibly switches speed according to load weight and operation demands. High speed for light loads improves efficiency, while low speed for heavy loads ensures construction safety.
5. Highly Customized System Precisely Matching Segmented Industry Demands
Flexible customization solutions are provided from power brand, boom parameters to functional accessories and appearance colors. The most suitable equipment configuration can be tailored to the operation characteristics of different segmented industries such as building curtain wall, steel structure construction, factory maintenance, municipal engineering and equipment rental, precisely matching equipment functions with actual working conditions and maximizing use value.Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDZ-5T Spider Crane , please contact us.
