MKD-200 Wheeled Diesel Water Well Drilling Rig

Factory Direct

Training on Arrival

One-year warranty

Drilling depth: MAX.220-240m

Drilling diameter: 60-520mm

Horsepower(HP): 35HP

Request a Quote WhatsApp

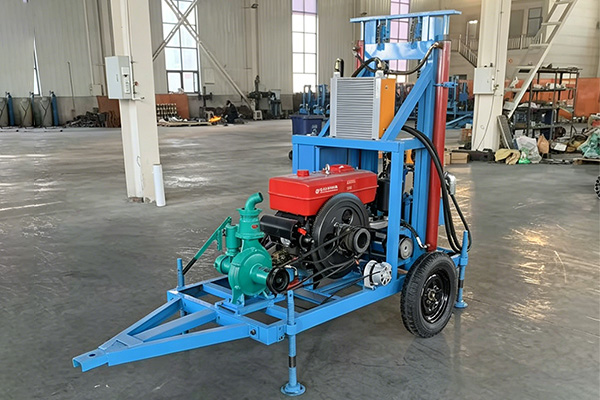

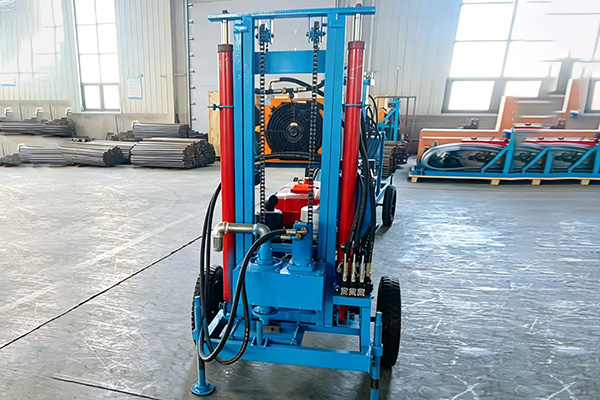

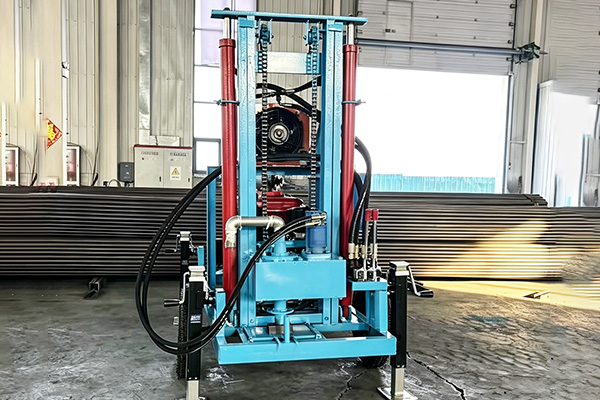

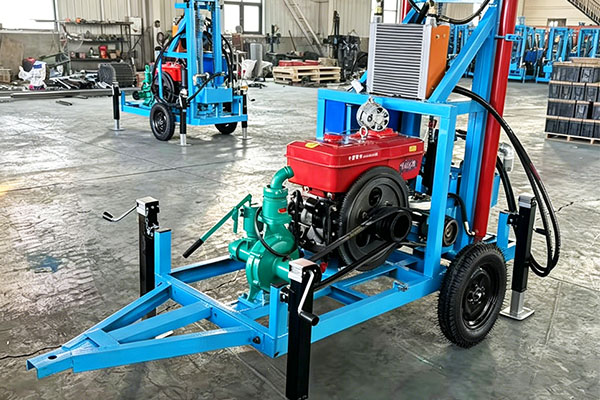

Product Pictures

Product Introduction

MKD-200 Water Well Drilling Rig

Overview

MKD-200 35HP dual-cylinder wheeled diesel hydraulic water well drilling rig supports max 220–240m deep drilling with 60–520mm variable borehole diameter. Equipped with Changchai L35M diesel engine and 1500N·m high-torque rotary power head, this compact wheel borehole machine delivers one-step fast feed speed, flexible off-site mobility, stable hydraulic drive, and covers farm irrigation, domestic drinking water, small geothermal & civil water well projects worldwide.

Specifications

Model	MKD-200
Drilling Depth	MAX.220-240 m
Drill Diameter	60-520mm
Drill Pipe Specification	50*1500 mm
Horsepower（HP）	35HP
Advance the Process all at once	18-24m
Gear Pump Displacement	280m³/h
Hydraulic Oil Tank Capacity	35L
Rotating Form of Power Head	Rotary Type
Maximum Torque of Power head	1500N·m
Maximum Speed of Power Head	148-150r/min
Work Quality	8000kg
Bare Machine Weight	635kg
Engine Model	ChangchaiL35M
Non-working State Dimensions	1900mm850mm1600mm
Operating State Dimensions	2800mm1200mm2650mm

Key Features

1.Lightweight Body for Easy Transportation & Installation

Adopts brand L35M diesel engine with 2200r/min rated speed, strong torque output for hard soil & thin rock layers, low fuel consumption to cut long-term operation cost for rural & remote well projects.

2.High-Torque Power Head for Stable Drilling in Complex Strata

Rotary-type power head delivers steady cutting force for clay, sandstone and mixed strata, adjustable rotating speed adapts different ground conditions to avoid drill pipe stuck.

3.Wheel-Mounted Mobile Design, Easy Transfer Between Scattered Job Sites

Light bare machine weight 635kg with integrated wheel chassis, no extra truck transportation required; compact non-working dimension 1900×850×1600mm fits narrow country roads & mountain trails.

4.Max 240m Deep Drilling Capacity, Wide Aperture Range 60–520mm

Flexible borehole size covers small household tube wells to large-diameter agricultural irrigation wells, meets diverse groundwater development demands across Africa, Southeast Asia & Middle East.

5.Complete Counterweight Configuration, Stable Drilling Without Tilting

Total working weight reaches 8000kg with matched increase weight, effectively offsets drilling reaction force, keeps vertical well forming and eliminates rig shaking during deep hole operation.

6.All-In-One Hydraulic Integrated Structure, Low Failure Rate & Easy Maintenance

Centralized hydraulic drive system reduces scattered mechanical transmission parts, simple structure minimizes breakdowns; operators master daily maintenance without professional technical training.

Get a quote

For inquiries regarding the price, specifications, or configuration details of the MKD-200 water well drilling rig, please contact us.
