Drilling depth: MAX.150m
Drilling diameter: 60-360mm
Horsepower(HP): Two-phase Electricity 4kW; Three-phase electricity 4kW/5.5kW/7.5kW

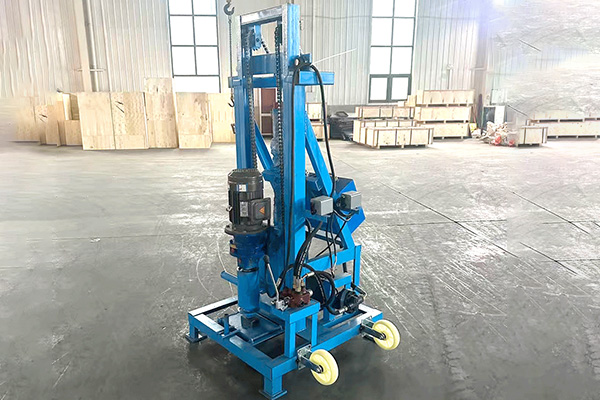

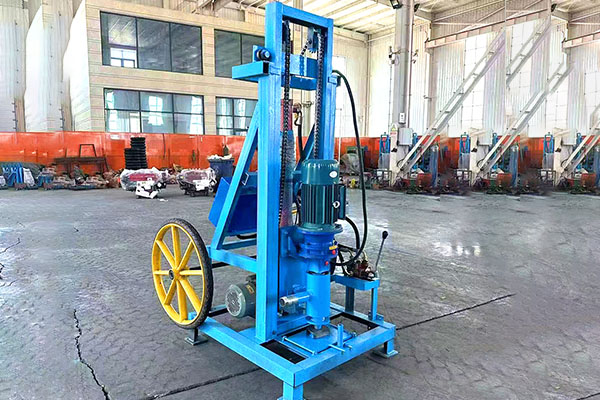

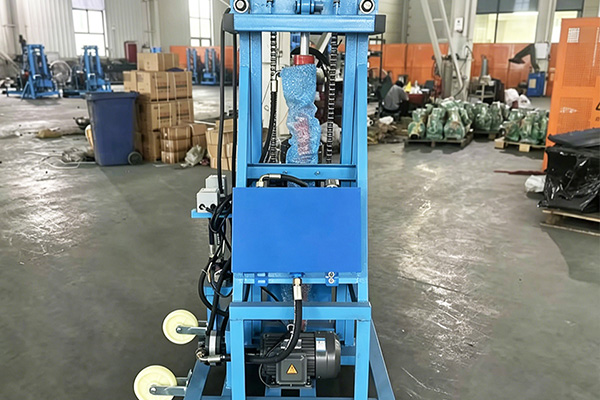

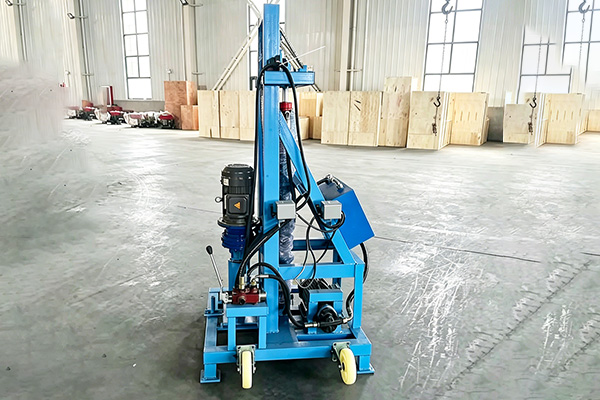

MKD-120D Water Well Drilling Rig
Overview
This is a popular and economical electric hydraulic water well drill for civilian use. It adopts hydraulic automatic drilling technology, which significantly saves effort and offers outstanding efficiency. The operation is simple and easy to master. The machine is lightweight and easy to transport, with minimal requirements for the work site. It can meet various shallow drilling needs such as household drinking water, farmland irrigation, and site dewatering. It can also be converted to diesel power, making it suitable for operations in remote areas without electricity.
Specifications
| Model | MKD-120D |
| Drilling Depth | MAX.150 m |
Drill Diameter | 60-360mm |
Drill Pipe Specification | 42*1500 mm |
| Horsepower（HP） | Two-phase Electricity 4kW/Three-phase electricity 4kW/5.5kW/7.5kW |
Advance the Process all at once | 8-14m |
Gear Pump Displacement | 180m³/h |
Hydraulic Oil Tank Capacity | 35L |
Rotary Type | |
| Maximum Torque of Power head | 1000N·m |
Maximum Speed of Power Head | 160-168r/min |
| Increase Weight | 5000kg |
| Bare Machine Weight | 350kg |
Work Quality | 5000kg |
| Non-working State Dimensions | 1800mm*800mm*900mm |
| Operating State Dimensions | 2700mm*800mm*900mm |
1.Lightweight Body for Easy Transportation & Installation
The bare machine weight is only 350KG, with a compact non-working size of 1800*800*900mm. It features a small footprint and light weight, easy to transport by pickup truck and small engineering vehicle, and adapts to narrow yards, rural roads and limited construction sites.2.High-Torque Power Head for Stable Drilling in Complex Strata
Equipped with a high-performance rotary power head with a maximum torque of 1000N·m and an adjustable speed of 160-168r/min. It provides strong cutting and penetrating power, stably coping with clay, sand, gravel and weathered rock strata, avoiding drilling jams and improving construction stability.
3.One-Time Long Advance Stroke for High Efficiency & Labor Saving
Adopting an integral one-time advance process with a single stroke advance of 12-18 meters. It reduces frequent drill pipe lifting and docking operations, greatly saves manual labor, shortens the single-well drilling cycle, and significantly improves overall construction efficiency.4.Large-Displacement Pump & Large-Capacity Hydraulic Tank for Non-Stop Operation
Matched with a 180m³/h high-flow gear pump and a 35L large-capacity independent hydraulic oil tank. The hydraulic system provides stable and sufficient power supply, effectively controls oil temperature rise, supports long-term uninterrupted drilling, and avoids equipment shutdown caused by overheating.5.Standard Heavy-Duty Drill Pipe with High Durability & Easy Replacement
Equipped with 42*1500mm standard specification drill pipes, featuring high tensile strength, wear resistance and pressure resistance. The universal standard size is convenient for global users to purchase and replace accessories locally, with simple assembly and no professional tools required.For inquiries regarding the price, specifications, or configuration details of the MKD-120D water well drilling rig, please contact us.
