Self weight: 10.5T
Dimensions: 5.9 * 1.8 * 2.3 m
Max operating radius: 18 m

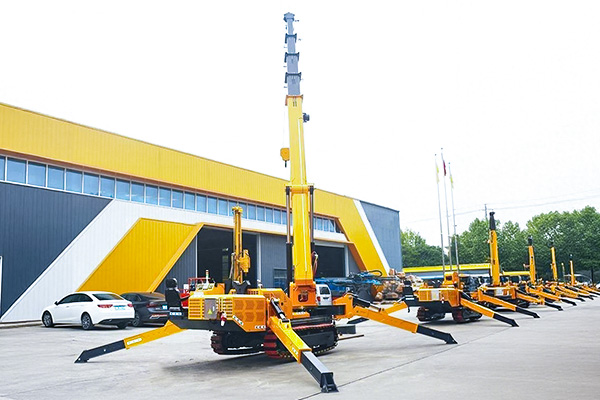

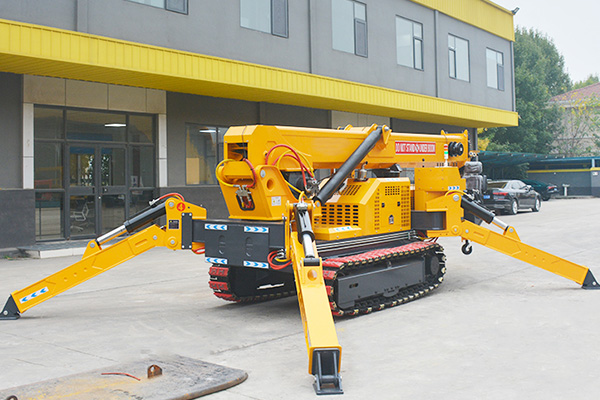

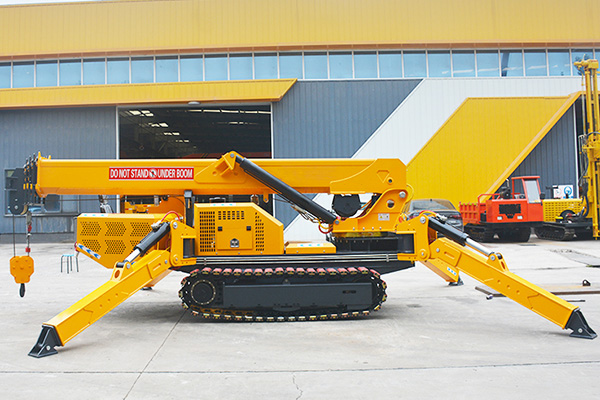

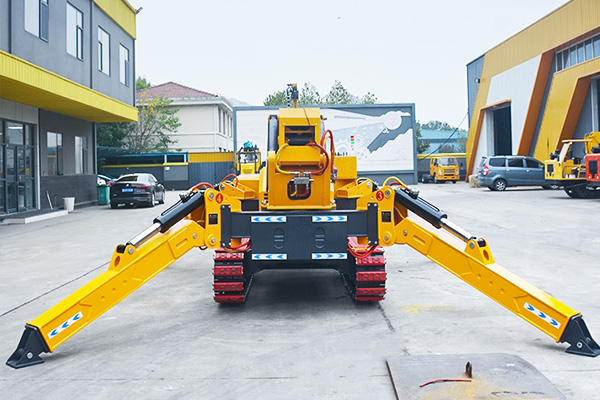

MKDZ-10T Spider Crane
Overview
The MKDZ-10T Spider Crane is a 10-ton high-performance compact lifting device, standardly equipped with a Yunnei 76KW high-power diesel engine and a 5-section high-strength telescopic boom. It delivers a maximum lifting height of 21m and a maximum safe operating radius of 18m, with rated lifting capacity covering medium and large component hoisting demands.Fitted with a two-speed winch system and 100m extended wire rope, it adapts to special working conditions such as deep foundation pits and high-drop operations. The 350mm wide crawler chassis provides excellent ground contact performance, easily handling various complex construction site terrains such as mud and slopes.
Specifications
| Model | MKDZ-10T |
Rated Lifting Capacity | 10.5t |
Max Vertical Lifting Height | 21 m |
Max Safe Operating Radius | 18m |
Telescopic Boom form | 5mx5-section lifting arm (Support customization) |
Boom length/time | 12.3m/58sec(adjustable) |
Overall Transport Dimensions (L×W×H) | 5900 × 1800 × 2300 mm |
Winches Hook Rising Speed | 11m/min (4-rope) two-speed |
Winches Wire Rope Specifications | Ф 12mm*100m |
Track | 350mm(width)135mm(pitch)41mm(section) |

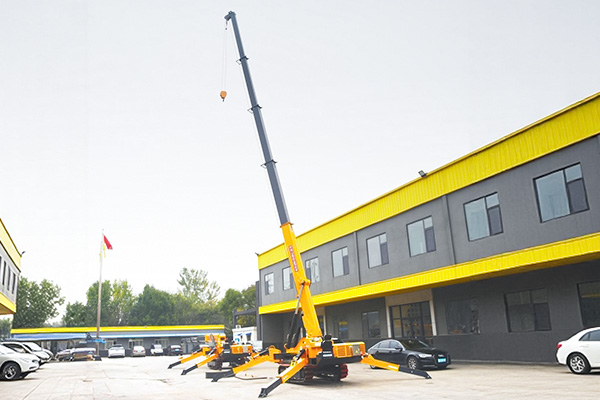

1. 10 Ton Rated Lifting Capacity with 21m Extra-Large Lifting Height
With a rated lifting capacity of 10 tons and a maximum above-ground lifting height of 21m, it efficiently completes heavy-duty high-altitude operations such as mid-high rise building facade construction, large steel structure hoisting and heavy equipment positioning. It can replace traditional large cranes for construction in most scenarios, greatly reducing the access and scheduling costs of large equipment.
2. 18m Maximum Operating Radius with Wide-Range Coverage
The maximum safe operating radius reaches 18m. With outriggers fixed, it covers an extra-large working area, greatly reducing the frequency and time loss of equipment relocation and re-setup. It fits the demand of multi-point continuous hoisting on large construction sites, and effectively improves the overall operation efficiency of long-cycle construction projects.3. Yunnei 76KW High-Power Diesel Power System
Standardly equipped with a Yunnei 76KW high-power diesel engine, it has abundant power reserve and delivers stable and reliable output under heavy-duty conditions such as full-load hoisting, long-boom operation and slope climbing. With mature engine technology and a complete global parts supply system, it ensures convenient after-sales maintenance and supports power brand customization.
4. 100m Extended Wire Rope for Special Working Conditions
Equipped with Φ12mm×100m high-strength extended wire rope with sufficient length, it covers lifting demands in special scenarios such as deep foundation pit hoisting, deep well operation and high-drop construction. It expands the application scenario boundary of the equipment, and can complete deep operations without additional rope splicing.
5. Compact Heavy-Duty Integrated Design Replacing Traditional Large Cranes
While achieving 10-ton heavy-duty capacity and 21m lifting height, the machine maintains a compact design and can operate in confined spaces and narrow sites unreachable by traditional large cranes without modifying site building structures. One machine covers the working range of multiple small and medium lifting equipment, effectively reducing equipment procurement quantity, transportation scheduling costs and on-site labor input.Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDZ-10T Spider Crane , please contact us.
