Self weight: 12.5T
Dimensions: 6.15 * 1.86 * 2.48 m
Max operating radius: 19 m

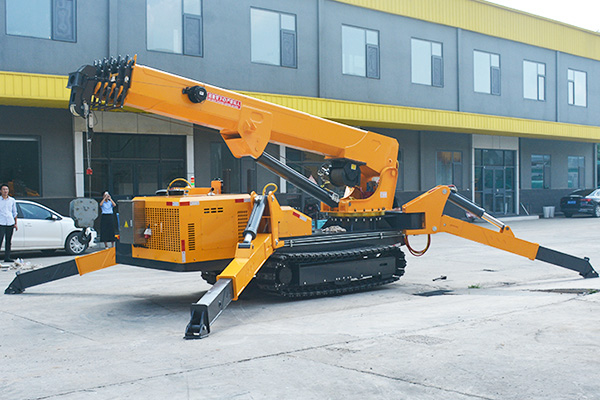

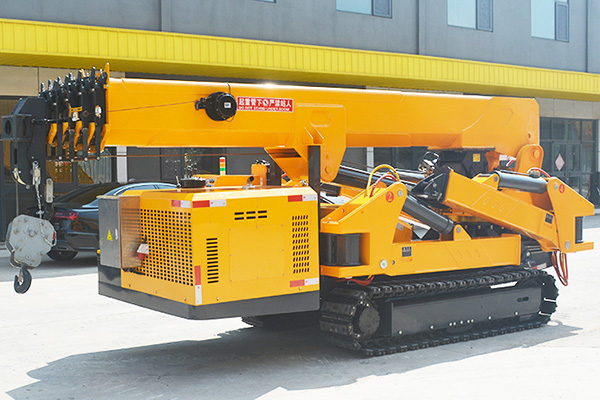

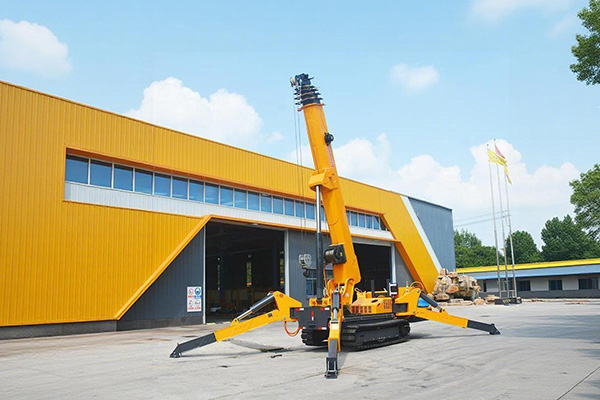

MKDZ-12T Spider Crane
Overview
The MKDZ-12T crawler spider crane is a compact heavy-lifting equipment that combines high load capacity and excellent passability in narrow spaces. With a 12-ton rated lifting capacity and 21m maximum lifting height, it is equipped with a 5-section telescopic boom and crawler travel chassis, adapting to diverse working conditions such as narrow indoor spaces, rugged outdoor sites and wide temperature ranges.
Specifications
| Model | MKDZ-12T |
Rated Lifting Capacity | 12.5t |
Max Vertical Lifting Height | 21 m |
Max Safe Operating Radius | 19m |
Telescopic Boom form | 5mx5-section lifting arm (Support customization) |
Boom length/time | 12.3m/60sec(adjustable) |
Overall Transport Dimensions (L×W×H) | 6150 × 1860 × 2480 mm |
Winches Hook Rising Speed | 10m/min (4-rope) two-speed |
Winches Wire Rope Specifications | Ф 12mm*120m |
Track | 400mm(width)135mm(pitch)44mm(section) |

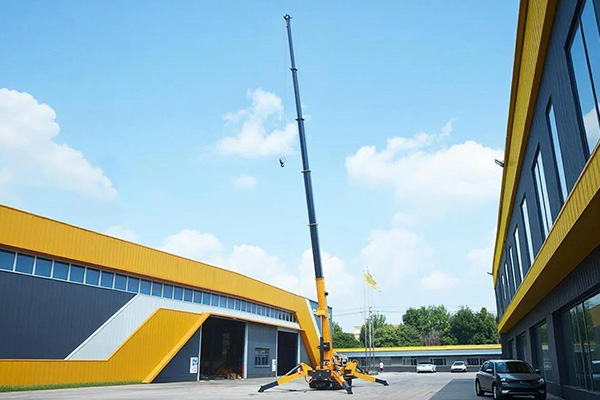

1. 12 Ton Rated Lifting Capacity with 21m Extra-Large Lifting Height
With a rated lifting capacity of 12 tons and a maximum above-ground lifting height of 21m, it efficiently completes heavy-duty high-altitude operations such as mid-high rise building facade construction, large steel structure hoisting and heavy equipment positioning. It can replace traditional large cranes for construction in most scenarios, greatly reducing the access and scheduling costs of large equipment.
2. 40L Large-Capacity Fuel Tank for Long-Endurance Continuous Operation
Equipped with a 40L large-capacity diesel fuel tank and optimized fuel economy design, it supports ultra-long continuous operation per refuel, greatly reducing the frequency and time loss of round trips for refueling on site, and effectively improving the overall operation efficiency of long-cycle, long-distance construction projects.3. Diverse Custom Options with Configurable Functions and Appearance
It supports multiple functional accessories including load moment controller, wireless remote control, working basket and hydraulic boom, and offers 6 appearance colors: red, green, yellow, white, grey and black. Customized equipment configuration is available based on working condition demands and brand visual preferences of different industries.
4. Industry-Leading Working Performance in Its Class Expanding High-Value Engineering Boundaries
Among 12-ton compact spider cranes, the MKDZ-12T leads in performance with 21m lifting height and 19m operating radius. Its working coverage far exceeds conventional models of the same class, enabling customers to undertake more mid-high rise, large-span heavy-duty lifting projects, break through equipment performance limits and expand the undertaking scope of high-value engineering businesses.
5. Strong All-Terrain and All-Weather Adaptability for Global Construction Sites
The wide-temperature operation capability from -50℃ to 45℃ covers most climate zones around the world, enabling stable operation from frigid regions to tropical zones. The 400mm extra-wide crawler chassis handles various complex terrains, and core components comply with international usage standards. It meets procurement demands in multiple scenarios such as overseas engineering rental, cross-border construction projects and international equipment trade, with strong global adaptability.Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDZ-12T Spider Crane , please contact us.
