Self weight: 16.5T
Dimensions: 7.35 * 2.13 * 2.68 m
Max operating radius: 23 m

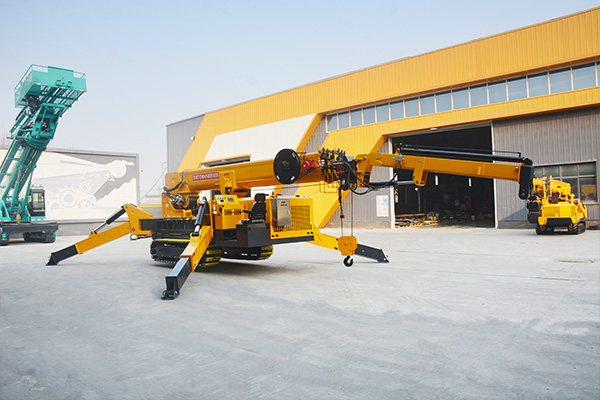

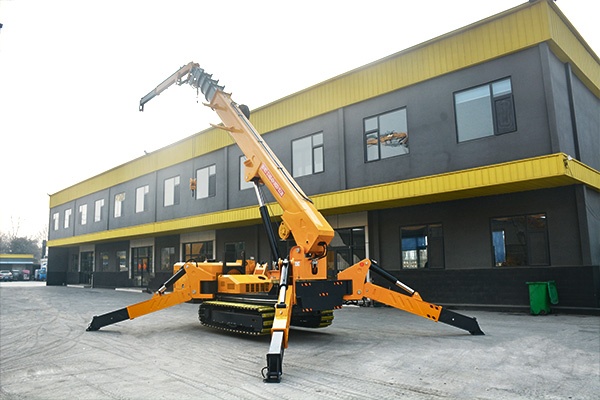

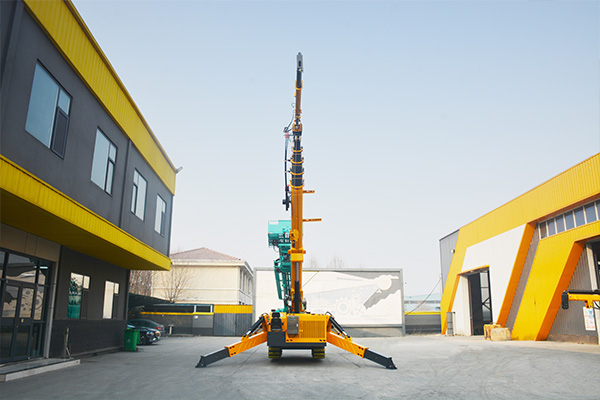

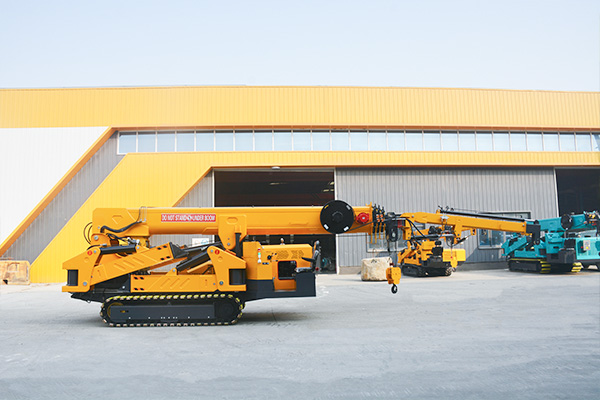

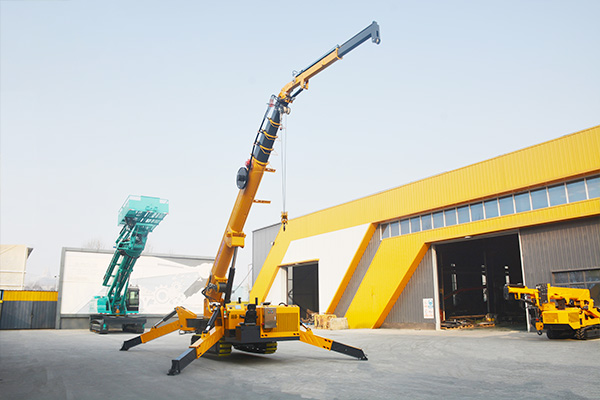

MKDZ-16T Spider Crane
Overview
The MKDZ-16T spider crane is a large-tonnage compact lifting equipment designed for medium and heavy lifting scenarios. With a 16-ton rated lifting capacity, 25m maximum lifting height and 23m maximum operating radius, it is equipped with a 5-section 6m-class telescopic boom and an 85KW high-power diesel engine, paired with a crawler travel chassis for excellent passability on complex terrains.
Specifications
| Model | MKDZ-16T |
Rated Lifting Capacity | 16.5t |
Max Vertical Lifting Height | 25m |
Max Safe Operating Radius | 23m |
Telescopic Boom form | 6mx5-section lifting arm (Support customization) |
Boom length/time | 12.3m/40sec(adjustable) |
Overall Transport Dimensions (L×W×H) | 7350 × 2130 × 2680 mm |
Winches Hook Rising Speed | 10m/min (4-rope) two-speed |
Winches Wire Rope Specifications | Ф 12mm*160m |
Track | 400mm(width)135mm(pitch)48mm(section) |
1. 16 Ton Rated Lifting Capacity with 25m Extra-High Lifting Height
With a rated lifting capacity of 16 tons and a maximum above-ground lifting height of 25m, it efficiently completes heavy-duty high-altitude operations such as high-rise building facade construction, large steel structure hoisting and high-position heavy equipment positioning. It can replace traditional large truck cranes for most mid-high construction, greatly lowering the access threshold and scheduling costs of large equipment.2. 23m Maximum Operating Radius with Ultra-Wide Working Coverage
The maximum safe operating radius reaches 23m. With outriggers fixed, it covers an ultra-large working area, greatly reducing the frequency and time loss of equipment relocation and re-setup. It fits the demand of multi-point continuous hoisting on large construction sites, and effectively improves the overall operation efficiency of long-cycle, large-span construction projects.3. 160m Extended Wire Rope for Large-Depth Deep Foundation Pit Operations
Equipped with Φ12mm×160m high-strength extended wire rope with sufficient length, it covers lifting demands in large-depth special scenarios such as deep foundation pit hoisting, deep well operation, high-drop construction and underground maintenance. It greatly expands the application scenario boundary of the equipment, and can complete ultra-large-depth operations without additional rope splicing.
4. High-Power Heavy-Duty Power System for Continuous Stable Output in Harsh Conditions
Standardly equipped with a Yuchai 85KW high-power diesel engine, its power reserve far exceeds models of the same class. It delivers continuous and stable output under harsh conditions such as full-load hoisting, full-boom operation and long-distance slope climbing on complex terrain without power attenuation. Meanwhile, the mature core power components and high part versatility greatly reduce after-sales maintenance costs and downtime for overseas customers.
5. Long-Endurance Efficient Operation Improving Engineering Rental ROI
The two-speed winch system paired with the 40-second fast telescopic boom greatly shortens the single hoisting cycle time and increases daily workload. The 45L large-capacity fuel tank reduces refueling interruptions and ensures long-cycle continuous operation. The overall high turnover efficiency of the equipment is especially suitable for large-scale engineering rental scenarios, effectively improving equipment utilization and return on investment.Get a quote
For inquiries regarding the price, specifications, or configuration details of the MKDZ-16T Spider Crane , please contact us.
