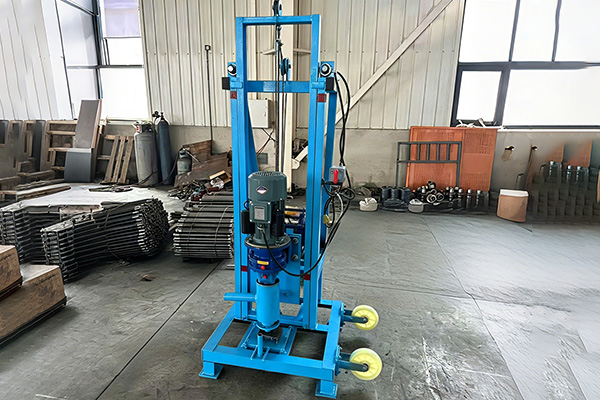

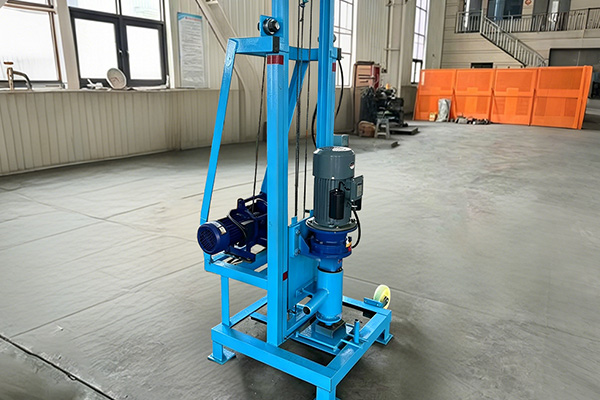

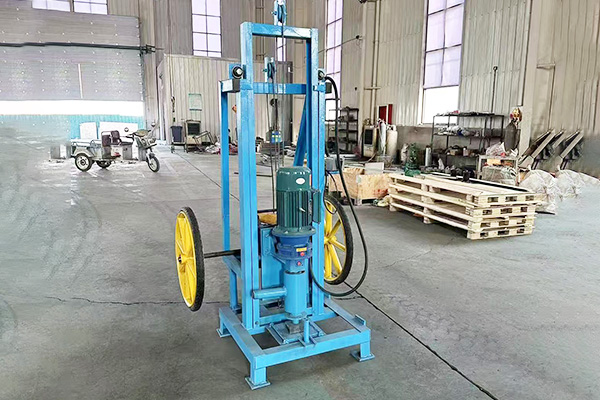

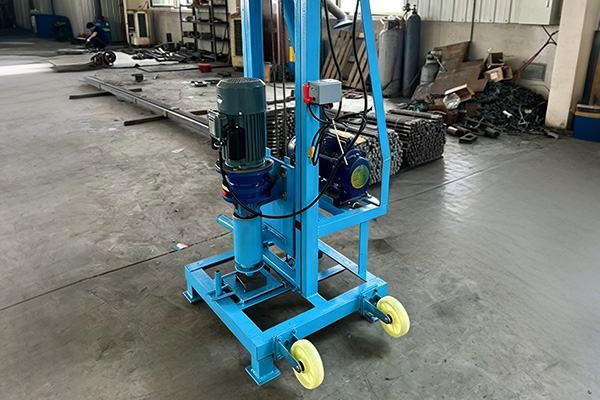

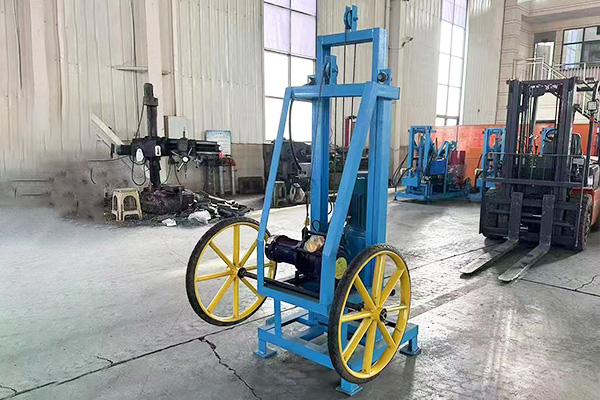

MKD-110D Pure Electric Telescopic Water Well Drilling Rig

MKD-110D is a pure electric telescopic water well drilling rig specially designed for light drilling projects, supporting multiple power specifications of two-phase and three-phase power supply, with clean and low-noise operation and low operating costs. The maximum drilling depth of the machine is 100-120m, the aperture coverage is 60-300mm, and the turning torque is 700N · m. The body is ultra compact and lightweight, suitable for small engineering drilling operations in civilian drinking water wells, farmland irrigation, and confined spaces.

Specifications

Key Features

1.Dual power compatible, multi power motor optional

Supports 4kW two-phase household electricity and 4kW/5.5kW/7.5kW three-phase industrial power, flexible to match on-site power supply conditions. No independent diesel unit is needed, making it accessible for rural and residential drilling projects with standard grid access.

2.Zero emission pure electric drive

Adopts full electric drive structure with no exhaust fumes during operation, featuring a lower carbon footprint and environmental compliance. It is an eco-friendly alternative to diesel rigs, ideal for projects with strict emission requirements in residential and ecologically sensitive areas.

3.Integrated Telescopic Drill Mast for Quick Setup

Features an integrated telescopic drill structure that extends from 1800mm to 2700mm working length without complex on-site assembly. The telescopic design drastically cuts preparation time, enabling fast mobilization between scattered job sites.

4.Ultra-Narrow 800mm Body for Confined Space Drilling

Maintains an 800mm width and 900mm height in both working and non-working states, allowing access to narrow yards, alleys and indoor spaces. It solves the problem that large drilling rigs cannot enter restricted construction sites.

5.Low Noise & Low Operating Maintenance Cost

Runs with far lower noise than diesel rigs, avoiding disturbance to surrounding residents in residential areas. The electric drive system has fewer moving parts, lower failure rate and no fuel consumption, greatly reducing long-term operation and maintenance expenses.

Get a quote

For inquiries regarding the price, specifications, or configuration details of the MKD-110D water well drilling rig, please contact us.
