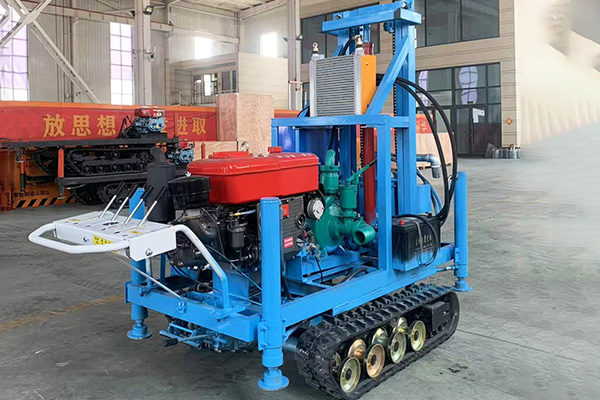

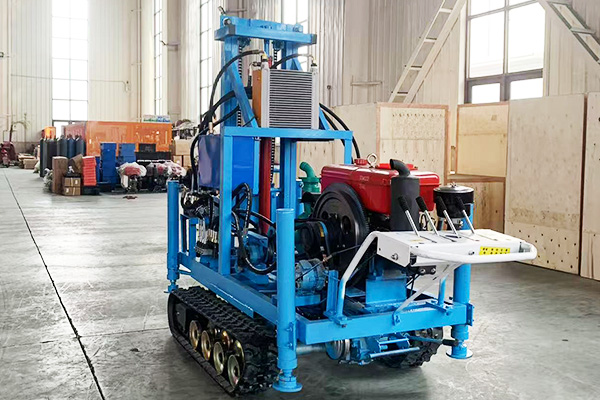

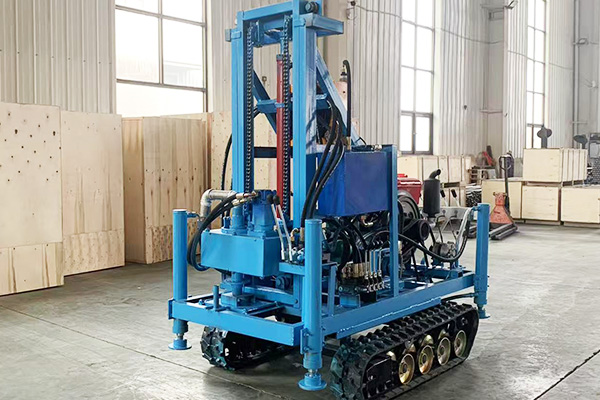

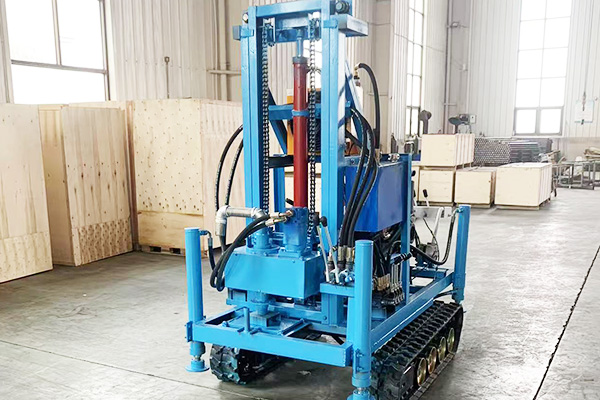

MKD-180L Crawler-type Diesel Water Well Drilling Rig

The MKD-180L is a 22-horsepower single-cylinder tracked diesel water well drilling rig equipped with a Changchai 1115M engine. The self-propelled tracked chassis supports all-terrain mobility, and the full hydraulic system enables a drilling depth of 180-200m, a hole diameter range of 60-460mm, and a stable rotary torque of 1000N·m. The entire machine is compact in structure and efficient in operation, suitable for a variety of common strata, and applicable to civilian drinking water wells, farmland irrigation, and small engineering drilling scenarios.

Key Features

1.All-terrain self-propelled tracked chassis

Equipped with a rubber-tracked chassis, it boasts a travel speed of up to 25km/h, allowing it to navigate freely on muddy, mountainous, and unpaved roads. It can move and transition independently without the need for an additional trailer, making it suitable for complex construction terrains inaccessible to wheeled drill rigs.

2.22 horsepower Changchai single-cylinder reliable power

Equipped with a Changchai 1115M single-cylinder diesel engine, it boasts a maximum speed of 2200r/min, providing stable and independent power in remote areas without access to a power grid. It offers excellent fuel efficiency, with easy access to after-sales parts and low maintenance costs.

3.Wide drilling range to accommodate diverse needs

The maximum drilling depth ranges from 180 to 200m, with a drill diameter adjustable from 60 to 460mm. It is compatible with standard 50-1500mm drill rods and can cater to diverse construction needs such as civilian shallow wells, medium-depth irrigation wells, and engineering drilling.

4.High-Performance Integrated Hydraulic System

Equipped with a gear pump with a displacement of 200m³/h and a 35L hydraulic oil tank, the full hydraulic transmission ensures smooth and precise action switching. The entire machine has a low failure rate and is easy to maintain on a daily basis.

5.Single-Operator Centralized Control

Adopts rotary power head structure with 1000N·m max torque and 148-150r/min working speed, delivering steady penetration performance for both soil and weathered rock formations.

6.Widely adaptable across multiple scenarios and terrains

It is widely applicable to civilian drinking water wells, farmland irrigation wells, small engineering dewatering wells, ground source heat pump drilling, and other scenarios, and can operate stably under various common geological conditions.

Get a quote

For inquiries regarding the price, specifications, or configuration details of the MKD-180L hydraulic water well drill, please contact us.
